NBN FTTC NTD Lights

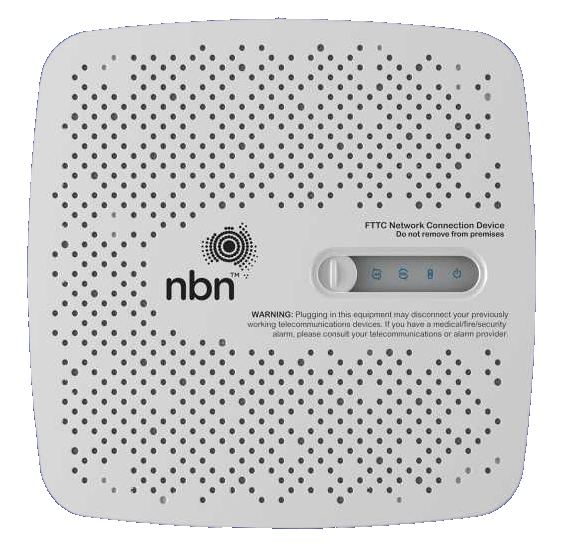

This article will help you understand the lights on the NBN FTTC (Fibre to the Curb) Connection box.
| Light | State | Meaning | |
| LAN | Off | NCD has no power or is not connected to a modem/router. | |
| Blue | Successful connection between NCD and modem/router. Flashing indicates local network activity. | ||
| Amber | Successful connection between NCD and modem/router. Flashing indicates local network activity. | ||
| DSL | Off | NCD has no power or is not communicating with the NBN™ access network. | |
| Blue | NCD is successfully communicating with the NBN™ access network. | ||
| Connection | Off | NCD has no power. | |
| Blue | Successful reverse power to NBN™ equipment outside the premises. | ||
| Red | Issue with reverse power. Please call Summit Support 1300 049 749 for assistance. | ||
| Power | Off | NCD has no power. | |
| Blue | NCD has power. | ||
